Fallout 4 Holotape (Prop version)

Fallout 4, Holotape, Prop Version

I have designed a Prop Holotape from Fallout 4. These Holotapes are part of my larger Pip-Boy replica project.

You can order these from my Shapeways shop.

The “Prop” version comes with 3D printed screws, which can be used to assemble the Holotape. (Beta feature), you can still use real metal screws. It can also be upgraded with a LED, switch and battery to act like a simulated holotape.
You need to order the white and orange portions of the functional model separately.

You can assemble the model using real metal screws:
3 qty, Screw, #0x0.125L, Plastic tapping, McMaster, 99461A505

You can also add a LED, resistor, switch and battery to make the prop into a simulated optical Holotape.
1 qty, LED, 2mm Red, Panasonic, LN222RPX
1 qty, Slide Switch, E-Switch EG1218
1 qty, Axial Resistor, 1/4W 56 Ohm
1 qty, Battery, CR2032

See the next post for assembly instructions

————-

Assembled and dyed prop

————-

Switchable LED, and moving dust door.

Video version:

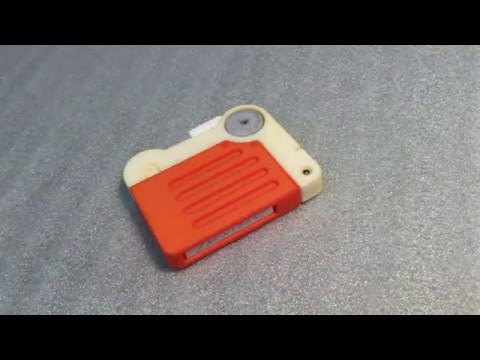

YouTube Preview Image

———————-

Fits with the Pip-Boy edition




Assembly Instructions





Parts needed:
-White 3D printed parts
-Orange 3D printed part
1 qty, LED, 2mm Red, Panasonic, LN222RPX
1qty CR2032 Battery Buy this part locally to save on Digikey Shipping. They are available at almost any grocery, convenience or electronics store.
1 qty, Slide Switch, E-Switch EG1218
1 qty, Axial Resistor, 1/4W 56 Ohm
3qty, #0-42 plastic tapping screws

For this design I only needed the files and exacto-knife when fitting the spindle together. Everything else is direct from the 3D print, no sanding needed.

————–

If you didn’t order the screws, you can use the faux 3D printed screws provided as part of the 3D printed model.
Simply clip them off of the rest of the white parts. 5 faux screws are a included incase you lose or break one.

————–

Next dye the larger portion of the Holotape. I used a Copic brand marker, “Raw Silk” color. The marker goes on darker then you would expect. So I first apply the marker, then use denatured alcohol to remove as much as possible. This left a nice off-white finish on the part. You could also use an airbrush to paint the surface.

————–

This image more clearly shows the before and after effect of dying the parts. On the left is the part after applying the marker, and on the right is the part after removing the marker.
The grey color here is “Cloud Nine Grey” from BIC.

————–

The orange parts comes pre-dyed by Shapeways and needs no additional work.
I made a label to the orange part by cutting up a adhesive shipping label.

————–

The dust cover door simply snaps onto the rest of the assembly.

————–

Next up is the electronics.

————–

Install the toggle switch. It simply slides into position, no glue needed.
To temporary hold it in place, you can splay out the legs a bit.

————–


[

The two halves of the spindle are designed to snap together around the switch. I found I did need to carefully file the snap-fit parts a bit to get them to mate, even then one leg ended up breaking off. Even with three legs the spindle holes together well. You can separate the two parts by twisting them apart from each other.
You can also glue the two halves together if needed. Take care not to get glue on the edges or switch.

————–


Test the LED and battery. You can do this for a few seconds without the resistor in the loop.
Take note of which leg of the LED needs to contact the positive (+) side of the battery. It should be the longer leg of the LED.
Install the LED into the hole. I found that test-fitting it from the back helped clear the hole of powder, but no drilling was needed.

Bend the short leg of the LED towards the switch, and the long leg towards the battery holder. Take care that the legs don’t cross.

————–

Clip, and then solder the short leg of the LED to the nearest terminal on the switch.

————–

Bend on end of the resistor into a small loop. The loop should be no larger than the recess shown in the battery holder area. Position the loop such that it acts like a spring against the battery.

The other end of the resistor goes up into the slot, and solders to the other two terminals on the switch.

————–

Install the battery. Then bend the long-leg of the LED into a loop. You should be able to twist the spindle and test the circuit. If the LED doesn’t light up you may have wired it backwards. If you did this you can simply flip over the battery, however you will need a piece of electrical tape to insulate the leg of the LED against the edge of the battery.

————–


The orange portion should easily slide into the rest of the assembly. Secure the orange portion with screws, or use the faux screws as pins.

————–


Assembly is complete, enjoy your new Holotape and show it off to your friends.






Game Cartridge Holotapes






(Rendering!)

For those who haven’t played the game, there are five mini-games that come on Holotapes.
These effectively look like old video game cartridges. What I did was design a new piece to replace the orange component. This piece is 0.5mm thinner on three sides, in order to accept the application of an adhesive label.

Now if you want to build a game version of the Holotape, you just order the “Label ready” component. You can order it in white and dye it, or try and see if you want to use one of the shapeways pre-dyed colors.

——————

I also designed artwork for each holotape. I extracted the in-game texture for each tape. The in-game texture didn’t included a backside, so I made one up. Carefully matching the existing themes. I also applied a halftone effect over the whole thing to simulate a cheaply printed design.
Print the images at 49.6mm wide in order to scale correctly to the Holotape

Note, the middle text on each is flipped to keep in line with how the label looks in-game.

Collect all five!
